Automatic audio guide system



Description Specifications

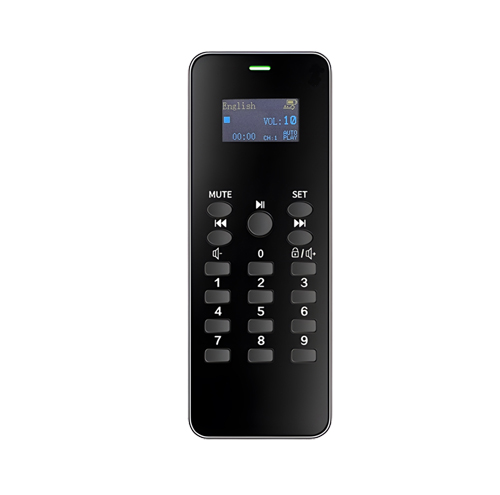

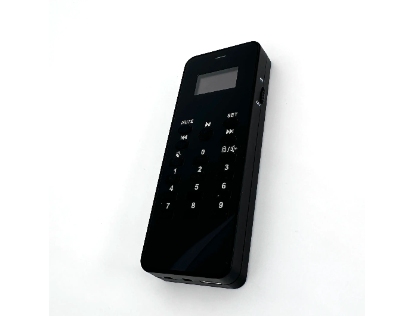

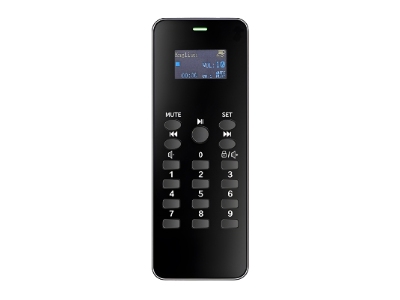

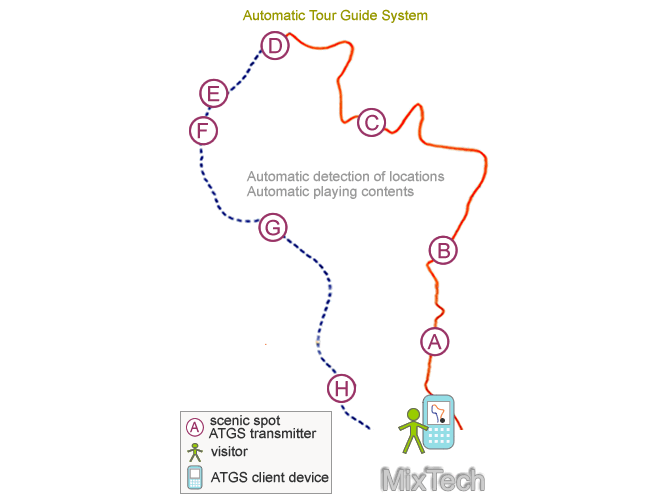

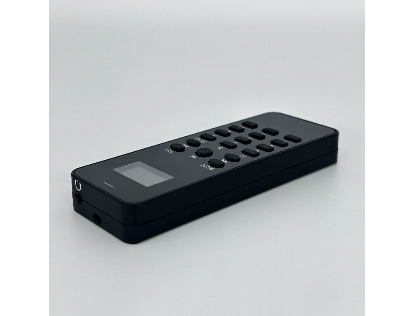

   The ATGS01 system is a new audio guide system. It has simple structure, low cost and can meet most requirements from clients. The visitor can manually activate the playing of contents by pushing the number keys on the handset. The file playing can also be triggered by a pre-installed signal transmitter in a location. The audio files can be uploaded by USB cable.


The ATGS01 system has the following features:

·        Limitless amount of handset device for each touring group.

·        Very Strong shell, long lasting.

·        Number-button playing. Automatic triggering by transmitter

·        OLED screen displaying languages, files number.

·        16 G storage space.

·        Support many languages.

·        Support up to 999 sections(number-input mode) or 256 sections (automatic triggering mode).

·        Slim and compact design, easy to carry.

·        Rechargeable Lithium battery. multi-unit charging case is available.

·        Battery time: 30 h




■Files MP3

■Triggering transmitter frequency: 600-900 MHz

■Triggering transmitter power: 10mw

■Support Multi-language, up to 90 languages available.

■Display: multi color OLED

■Standard 16G flash memory

■Up to 999 or 256 files for each language.

■One button switch language.

■Rechargeable Lithium battery, over 30 hours playing time.

■Frequency response: 20Hz-20kHz

■USB2.0 port for file management

■Dimensions: 115mm x 43mm x 15mm

■Weight: 68 gram
