simultaneous interpretation



Description Specifications

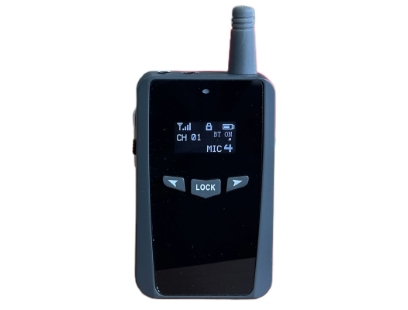

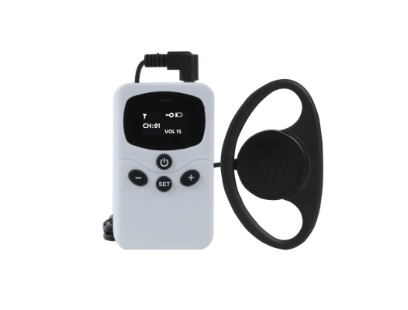

The portable Wireless Audio Transceiver (WAT) system consists of an audio transmitter and a set of receivers, which is perfectly suitable for international conferences requiring multi-language support and scenic spots holding many different touring parties.


The WAT05 B is our newest product. It has 200-250 meters distance with zero background noise. The high-fidelity sound frequency response is up to 16 kHz, very suitable for interpretation and conference. The receiver has a very small size. The receiver battery can last 12 hours.


Transmitter can connect to a mobile phone by blue tooth.


The WAT05 B system has the following features:

 Limitless amount of wireless receivers for each transmitter.

 High-fidelity sound. Frequency response is up to 16 kHz, no sound quality loss.

● Noise canceling technology to ensure zero background noise.

● Transmitter can connect to a mobile phone by blue tooth.

● Transmitter has mute function.

● Receiver can auto-scan and lock to a channel.

● Transmitter can turn off receivers by one button. Transmitter can change channel of receivers by one button.

● Over 200 meters range from the transmitter to receivers.

● 50-100 independent channels

● Receiver rechargeable Lithium battery can last up to 12 hours.

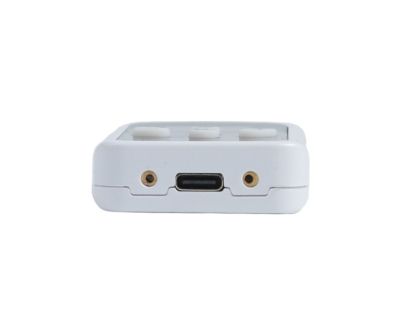

● Easy to use multi-unit battery charger and USB charging jack.

● Slim and compact design, easy to carry.


Parameter

Value

Wave band

600-900mHz

Frequency Response

20-16 kHz

Output Power

10 dBm

Sensitivity

-115 dBm

Distance

200 m for UHF (Open ground/without interference),

S/N ratio

>60 db

Input

3.5mm, microphone/audio

Output

3.5mm, earphone/audio

Channels

50-100 for UHF

Power supply

3.7 V Rechargeable Lithium battery, 12 hours battery life for receiver, 4 hours charging time

Dimension

Receiver: 66 mm x 41 mm x 13 mm

Weight

Receiver: 34.4 grams (battery integrated)
