Wireless tour guide system



Description Specifications

For those who like the clear 50-100 channels of WAT01 but prefer to use replaceable AA batteries, WAT01-AA is a good choice. It has the same channels, frequencies as WAT01, but it is powered by 2 x AA batteries.

It is very suitable for simultaneous translation. The sound quality is excellent.

It can be powered by disposable AA batteries, or rechargeable Ni-MH AA batteries. Multi-port charging case is available. 2 x AA battery can last 40 hours for the receivers.

It can share the stationary transmitters and two-way input transmitters with WAT01-NG.

It is the smallest tour guide system with AA batteries on the world market


The wireless tour guide system WAT01-AA  has the following features:



  •  Limitless amount of wireless receivers for each transmitter.

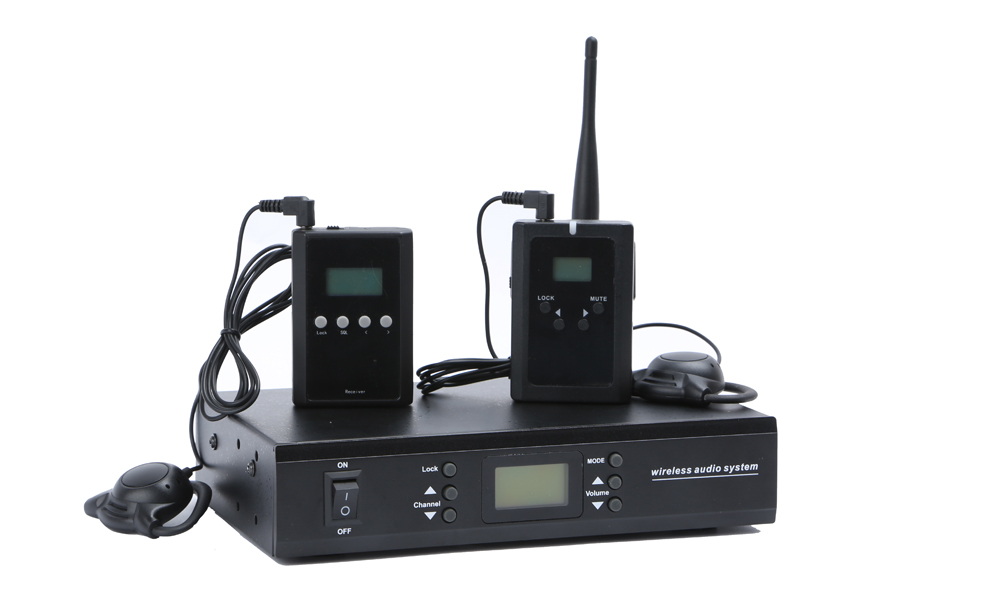

  •  Stationary transmitter available with MP3 playing function. Two way sound mixing function.


  •  Advanced microchips to ensure very little noises and compact size.


  •  Receiver can automatically turn off after 20 min without signal.


  •  Over 200 meters range from the transmitter to receivers.

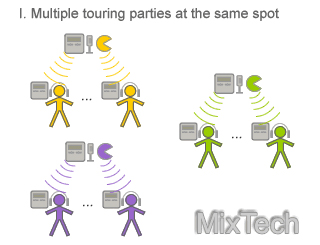

  •  50-100 independent channels, up to 20 work simultaneously at the same location.

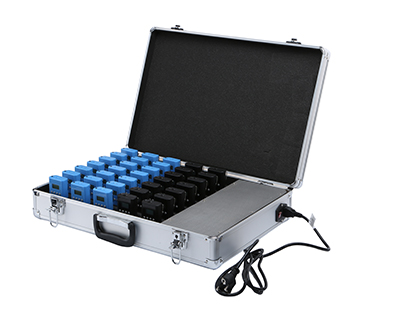

  •  Easy to use “drop in” multi-unit battery charger.




Paramater

Value

Wave band

794-806MHZ,   863-865MHZ,902-915MHZ, 2.4GHZ

No. of channels

50 -100 for UHF   (15 work simultaneously at one location), 83 for 2.4GHz

Output Power

10 dBm

Sensitivity

-110 dBm

Distance

150 m for   UHF (open ground without interference), 50-80 m for 2.4GHz

S/N ratio

>60 db

Input

3.5mm microphone/audio

Output

3.5mm earphone/audio

Power supply

2XAA batteries, 40 hours life for receiver, 4 hours charging time

Dimension

75mm x 50mm x 25mm

Weight

45 grams (No battery)
