Wireless audio guide system



Description Specifications

WAT-EH is a very compact system for daily tour guiding. The receiver has a size of Bluetooth earphone. It can be hanged on ear and is very convenient to use. There is no need to use a wired headphone. The receiver is powered by rechargeable Lithium battery. The battery can last 8 hours per charge. The ear-hook is replaceable. The speaker rubber can be replaced.


The WAT07-EH system has the following features:

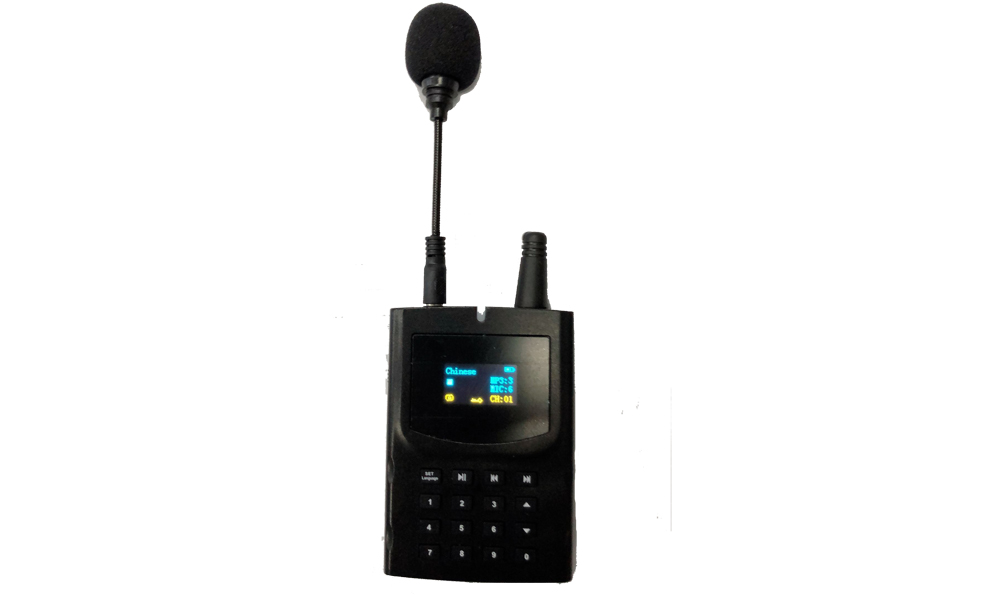

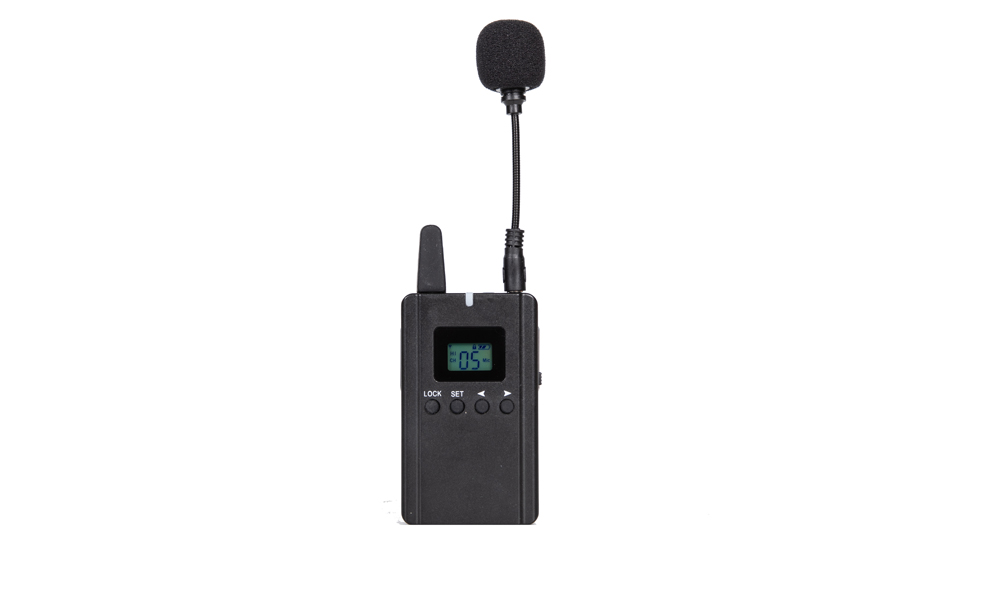

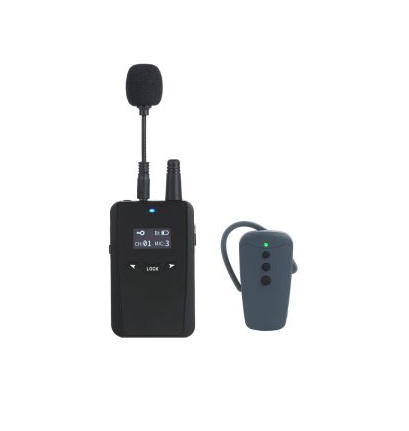

  • Handheld or body pack transmitters are available

  • 80-100 meters transmission distance

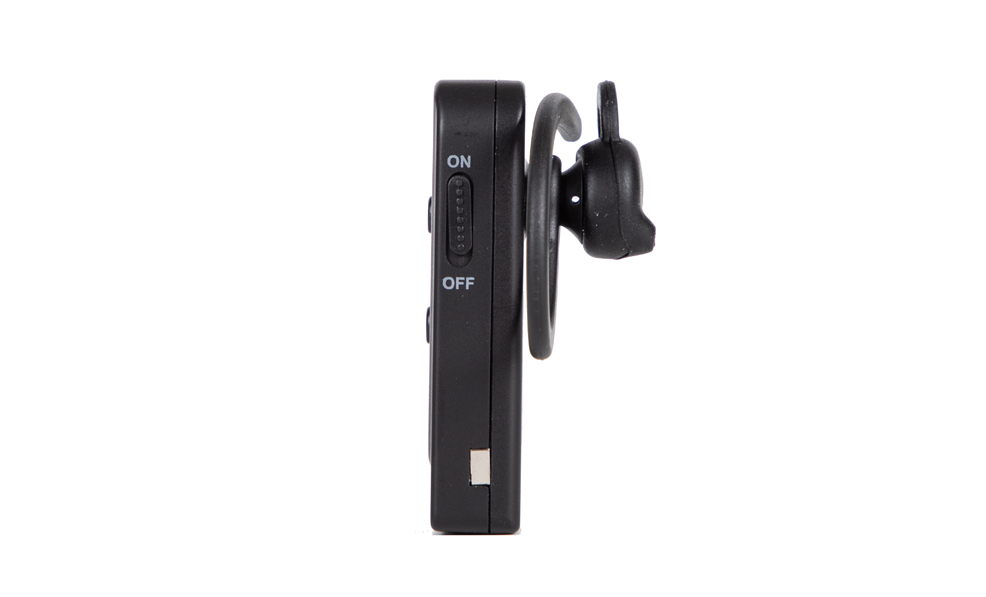

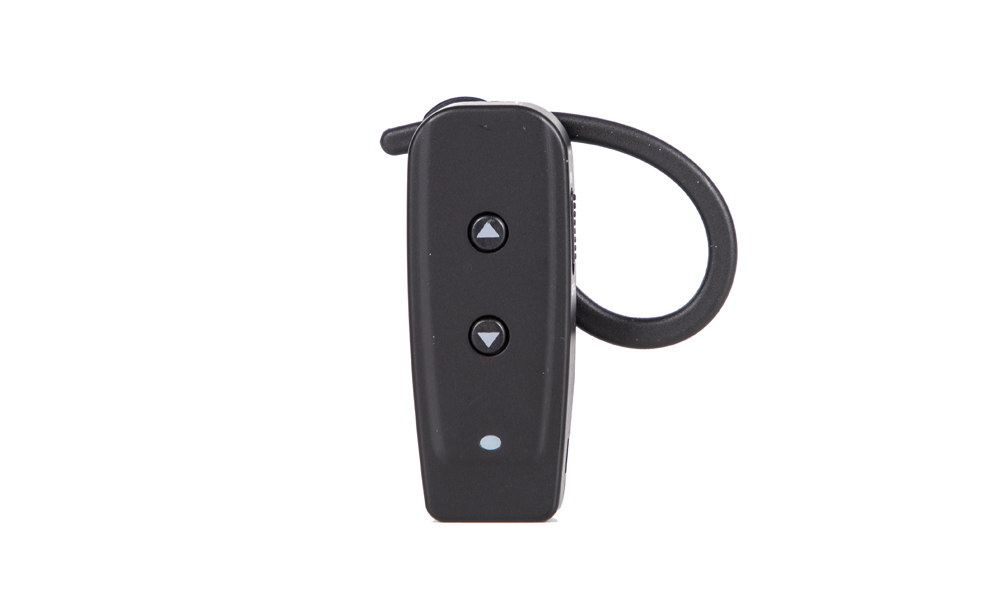

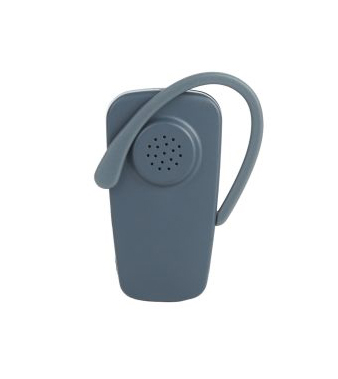

  • Receiver can be hanged on ear. Battery can last 20 hours.

  • Receiver can auto-scan and find a channel.

  • High-Tech Rechargeable Lithium battery with large capacity. Very light weight.

  • 2.4GHz international free frequency or UHF free frequency.

  • 83 independent channels to work at the same location

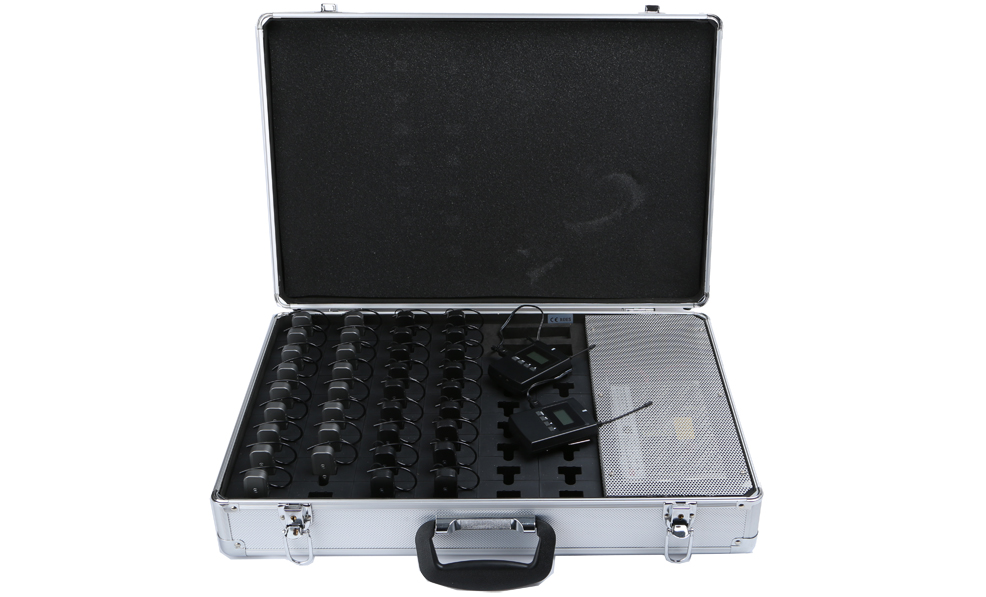

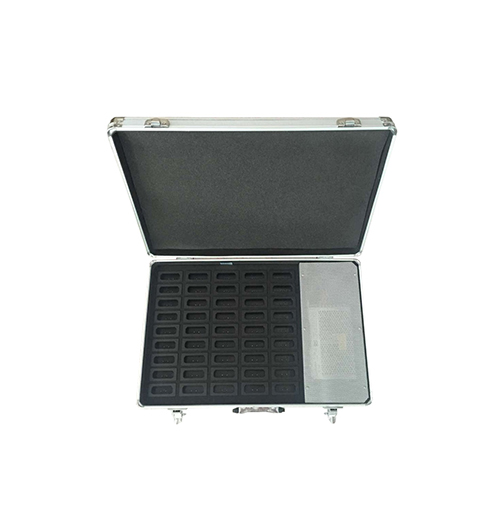

  • Multi-unit charging case is available



Paramater

Value

Wave band

2400-2483MHZ

No. of channels

83

Distance

80 m from   portable transmitters; 250m from stationary transmitters

Output Power

18 dBm

Sensitivity

-95 dBm

Frequency Response

20Hz-8kHz

S/N ratio

>60 db

Input

3.5 mm microphone/audio

Output

3.5mm earphone/audio

Power supply

3.7 V   Rechargeable Lithium battery, 20 hours life for receiver

Dimension

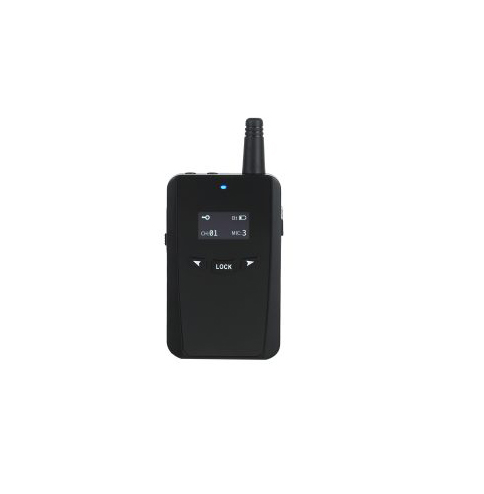

Portable   transmitter:83mm x 58mm x 18mm; Receiver: 83mm x 23mm x 12mm

Weight

25 grams   including rechargeable Lithium battery
